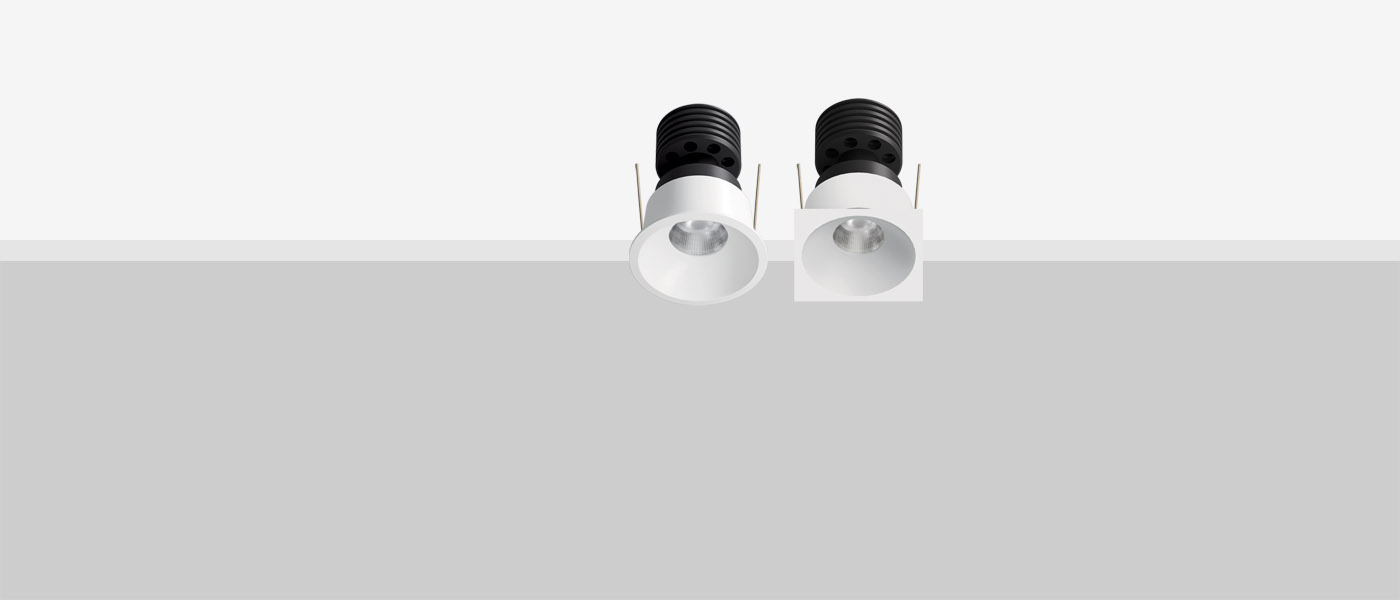

LEDA QX130

The range of Leda removable downlights offers high performance in extremely compact dimensions. Movement of the head allows complete orientation of the light output, in a fixture with minimal, sophisticated design.
Photometrics
  • F971
    36°
  • F972
    46°
  • F973
    60°
Code

LDQX13

  • X
    Finishing1WHITE*5BLACKCCUSTOM*
  • X
    color temperature242400K272700K303000K353500K404000KDWDim Warm*CUCUSTOM*
  • 9
  • X
    beam angleS36°M46°W60°
Optionals
  • AT127XO3255

    IC Housings Air Tight Recessed Box for Insulated Ceilling with 255mmx95mm Hole

  • DCVIB1X3

    24VDC Constant Voltage to Constant Current Converter 0-10V / Phase / Dim to Warm Compatible, 13W

  • IC127XO3255

    IC Housings Recessed Box for Insulated Ceilling with 255mmx95mm Hole

  • L001X3

    Low luminace louvre

  • MP-X255

    Mounting Plate with Hole

  • XO3255

    T-BAR Installation Mounting Plate

Drivers
  • DIM to WARM 400mA
    CCPRO10-Ax3-10W-400mAPHASE / 0-10VDUAL DIMMINGMIN. 1 / MAX. 1
    CCPRO40-Ax1-10W-400mAPHASE / 0-10VDUAL DIMMINGMIN. 1 / MAX. 1
  • STATIC WHITE 500mA
    CCPRO10-Ax3-10W-500mAPHASE / 0-10VDUAL DIMMINGMIN. 1 / MAX. 1
    CCPRO40-Ax1-10W-500mAPHASE / 0-10VDUAL DIMMINGMIN. 1 / MAX. 1
